What are the methods of clay conveying?

Clay conveying is a critical process in various industrial applications, particularly in the mining, construction, and manufacturing sectors. The efficient transportation of clay from its source to processing facilities or storage areas is essential for maintaining production efficiency and ensuring the quality of end products. Different methods of clay conveying have been developed to address the unique challenges posed by clay's physical properties, such as its high moisture content, cohesive nature, and variable particle size. This article explores the primary methods used for clay conveying, highlighting their applications, advantages, and considerations for implementation.

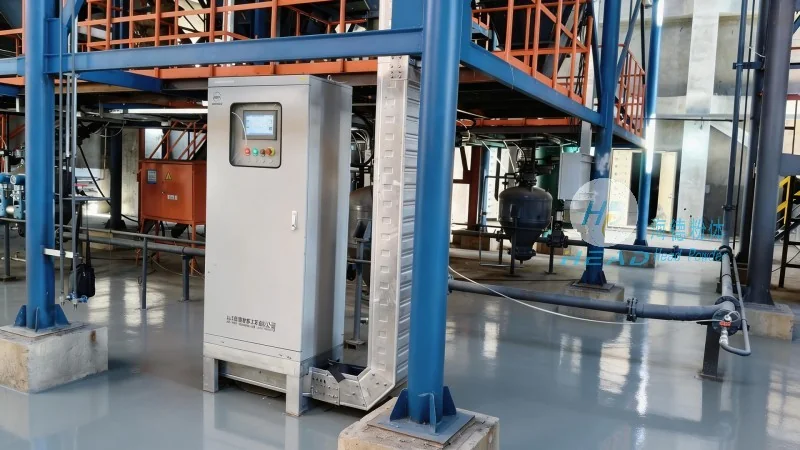

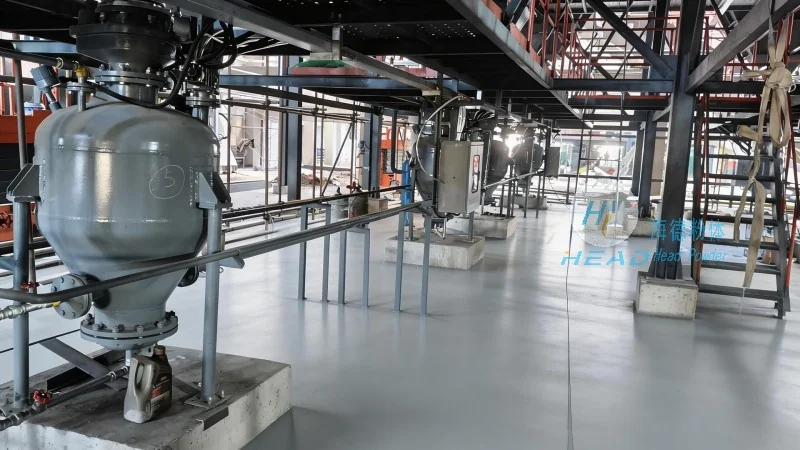

1. Pneumatic Conveying Systems

Pneumatic conveying, also known as air conveying, is a widely used method for transporting clay in dry or semi-dry forms. This technique involves using compressed air to move clay particles through a pipeline. The system typically consists of a hopper, a rotary valve, a conveying line, and a receiver. The clay is fed into the hopper, and as compressed air is introduced, it lifts and propels the particles through the pipeline to the destination. Pneumatic conveying is particularly effective for fine-grained clay and can handle long distances with minimal equipment. However, it requires careful control of air pressure and flow rates to prevent particle degradation or blockages. The method is commonly employed in industries like ceramics, where precise clay handling is crucial for product consistency.

2. Hydraulic Conveying Systems

Hydraulic conveying, or slurry transport, is another effective method for clay conveying, especially when dealing with wet or highly cohesive clay. This approach involves mixing clay with water to form a slurry, which is then pumped through pipelines using centrifugal pumps or positive displacement pumps. The slurry is transported under pressure, and the water content helps maintain the flow and prevent clogging. Hydraulic conveying is advantageous for transporting large volumes of clay over moderate distances, as it can handle high solids concentrations without excessive wear on the pipeline. It is widely used in mining operations for transporting clay from open-pit mines to processing plants. However, the system requires regular maintenance to prevent corrosion and scaling, and the disposal of excess water from the slurry must be managed properly to comply with environmental regulations.

3. Mechanical Conveying Systems

Mechanical conveying systems utilize mechanical components to move clay, offering a reliable and cost-effective solution for many applications. These systems include belt conveyors, screw conveyors, and bucket elevators. Belt conveyors are commonly used for transporting clay in bulk, especially in open-pit mining and construction sites. They consist of a continuous belt that moves over rollers, carrying the clay from the source to the processing area. Screw conveyors, or augers, are ideal for handling cohesive clay and can be installed horizontally or vertically. The rotating screw pushes the clay forward, making them suitable for short to medium distances. Bucket elevators are used for vertical transport, lifting clay from lower levels to higher ones, often in industrial plants. Mechanical conveyors are generally low-maintenance and can operate continuously, but they may experience wear and tear over time, requiring periodic replacement of components.

4. Gravity Conveying Systems

Gravity conveying systems rely on the natural force of gravity to transport clay, making them a simple and energy-efficient option for certain scenarios. This method involves designing the conveying path with a slight incline to allow clay to flow down through chutes or troughs. Gravity conveyors are commonly used for transporting dry clay from elevated storage areas to processing facilities, where the clay can slide down due to its weight. They are particularly effective for short distances and low volumes of clay. However, gravity conveying is limited by the need for a suitable slope and may not be suitable for wet or highly cohesive clay, as the flow can be hindered by clogging. This method is often used in combination with other systems to supplement the transport process.

5. Combination Conveying Systems

In many industrial settings, a single conveying method may not be sufficient to meet all the requirements of clay transport. Therefore, combination systems are often employed, integrating multiple technologies to achieve optimal performance. For example, a pneumatic conveying system might be used to transport fine clay from a hopper to a mixing tank, while a hydraulic system handles the slurry transport to the processing plant. Combination systems allow for flexibility and can adapt to varying clay properties and production demands. They are commonly used in large-scale operations where efficiency and reliability are critical. The design of combination systems requires careful planning to ensure smooth integration and minimal downtime.

About Shandong HeadPowder Engineering Co., Ltd.

Shandong HeadPowder Engineering Co., Ltd., operating under the brand name headpowder, is a leading provider of clay conveying solutions and related engineering services. With a strong presence in China, particularly in Shandong province, the company specializes in designing, manufacturing, and installing various conveying systems tailored to the needs of the clay industry. headpowder's expertise lies in understanding the unique challenges of clay handling and developing customized solutions that enhance operational efficiency and product quality. The company's team of engineers and technicians work closely with clients to assess their specific requirements and recommend the most suitable conveying methods, ensuring that the chosen systems meet industry standards and regulatory requirements. headpowder's commitment to quality and customer satisfaction has established it as a trusted partner in the clay processing sector.
