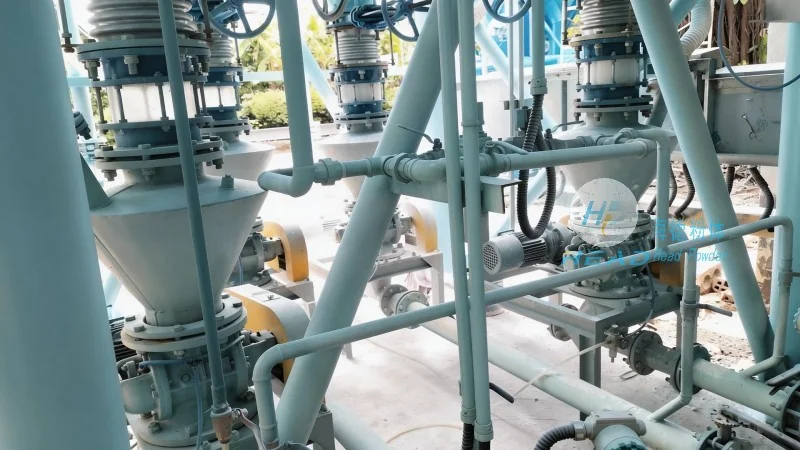

Key Design Considerations for the Design of a Refractory Material Pneumatic Conveying System

HeadPowder, a leading engineering firm based in Shandong, China, specializes in the design and implementation of advanced pneumatic conveying systems tailored for refractory materials. This article outlines the critical design considerations that ensure the efficiency, reliability, and safety of such systems, providing a comprehensive guide for industrial applications.

Understanding the Core Requirements of Refractory Material Handling

Refractory materials, such as bricks, powders, and granules, are characterized by their high temperature resistance and abrasive properties. These attributes necessitate specialized handling solutions that can manage the unique challenges posed by these materials. The primary goal of a pneumatic conveying system is to transport these materials from a source to a destination without degradation, ensuring minimal wear on equipment and maintaining product integrity throughout the process.

System Type Selection: Dilute Phase vs. Dense Phase

The choice between dilute phase and dense phase pneumatic conveying systems is a pivotal decision in the design process. Dilute phase systems operate at higher velocities, typically using air as the conveying medium, and are suitable for materials with low to moderate particle sizes and low bulk density. Dense phase systems, on the other hand, use lower velocities and higher air-to-material ratios, making them ideal for handling abrasive or fragile materials that require gentler transport. For refractory materials, the selection often depends on the specific characteristics of the material, such as particle size distribution, bulk density, and the distance to be conveyed.

Key Design Parameters for Optimal Performance

Several key parameters must be carefully considered to ensure the system operates at peak efficiency. These include the air velocity, which must be sufficient to prevent material settling but not so high as to cause excessive wear on components. The pressure drop across the system is another critical factor, as it directly impacts energy consumption and system reliability. Additionally, the system's capacity, defined by the maximum material flow rate, must align with the production requirements of the facility. Proper sizing of the conveying line diameter, the number of bends, and the use of appropriate fittings are essential to minimize pressure losses and maintain consistent flow.

Material Handling Equipment and Components

The selection of appropriate equipment and components is crucial for the longevity and performance of the pneumatic conveying system. For refractory materials, which are often abrasive, the use of high-quality, wear-resistant materials for components such as the air compressor, cyclone separators, and conveying pipes is essential. The air compressor must be capable of delivering the required pressure and flow rate, while the cyclone separator efficiently separates the material from the air stream, preventing clogging and ensuring clean air discharge. The conveying line, typically made of stainless steel or other corrosion-resistant materials, must be designed to withstand the abrasive nature of the refractory material and maintain a smooth interior to reduce friction and pressure losses.

Integration with Existing Infrastructure and Safety Measures

Integrating the pneumatic conveying system with existing industrial infrastructure requires careful planning to ensure seamless operation. This includes coordinating with the facility's air supply, electrical systems, and material storage areas. Safety measures are paramount in handling refractory materials, as these systems can generate high pressures and velocities. Proper venting systems, pressure relief valves, and emergency shutdown procedures must be incorporated into the design to prevent accidents and ensure compliance with safety regulations. Additionally, the system should be equipped with monitoring and control systems that allow for real-time adjustments to maintain optimal performance and prevent downtime.

Case Study: Successful Implementation by HeadPowder

HeadPowder has successfully implemented numerous refractory material pneumatic conveying systems across various industries, including steel, ceramics, and foundries. For example, a client in the steel industry required a system to transport high-temperature refractory bricks from a storage silo to a furnace. HeadPowder designed a dense phase system with a high-capacity air compressor and wear-resistant components, ensuring the bricks were conveyed efficiently without damage. The system was integrated with the client's existing infrastructure, and safety features were implemented to meet local regulations. The result was a significant reduction in labor costs and material handling time, while maintaining product quality and system reliability.

Conclusion and Future Considerations

Designing a pneumatic conveying system for refractory materials involves a comprehensive approach that considers material properties, system type, design parameters, equipment selection, and safety measures. By adhering to these key design considerations, industrial facilities can achieve efficient, reliable, and safe material handling solutions. As technology advances, future considerations may include the integration of automation and advanced monitoring systems to further enhance system performance and reduce operational costs. HeadPowder remains committed to providing innovative solutions that meet the evolving needs of the refractory industry.
