In the field of bulk material handling, the pneumatic conveying of plastic pellets, often referred to as PC particles, demands a specialized approach that balances gentle transport with high throughput. Shandong Headpowder Engineering Co., Ltd. has developed a comprehensive PC particle pneumatic conveying system designed to move polycarbonate granules, acrylic pellets, and other engineering plastics efficiently through pipelines without compromising material integrity. This solution is engineered to overcome the unique challenges posed by PC particles, including their tendency to generate fines, their sensitivity to impact, and the need for contamination-free transfer. By leveraging dilute-phase or dense-phase technology depending on the application, the system ensures that even fragile or irregularly shaped granules are delivered to processing stations with minimal degradation. The integration of advanced control valves, dedicated air sources, and custom-designed receiving hoppers makes this a turnkey approach for manufacturers who require reliable, low-maintenance material flow.

Core Components of the PC Particle Conveying System

Every PC particle conveying system from Shandong Headpowder Engineering Co., Ltd. is built around a modular architecture that allows for seamless adaptation to existing plant layouts. The system typically includes a rotary airlock feeder that meters the material into the conveying line, a positive displacement blower or roots-type compressor that provides the motive air, and a series of diverter valves that route the flow to multiple destinations. For applications where the material must be transported over long distances or through complex piping networks, the system incorporates booster jets to maintain velocity and prevent blockages. The receiving end features a cyclone separator or a cartridge filter to separate the conveyed particles from the transport air, with a rotary discharge valve ensuring continuous material discharge into storage bins or downstream equipment. All components are constructed from wear-resistant materials and are designed for easy access during cleaning and maintenance, which is critical when handling hygroscopic or dust-sensitive PC particles.

Dense-Phase vs. Dilute-Phase Technology for PC Granules

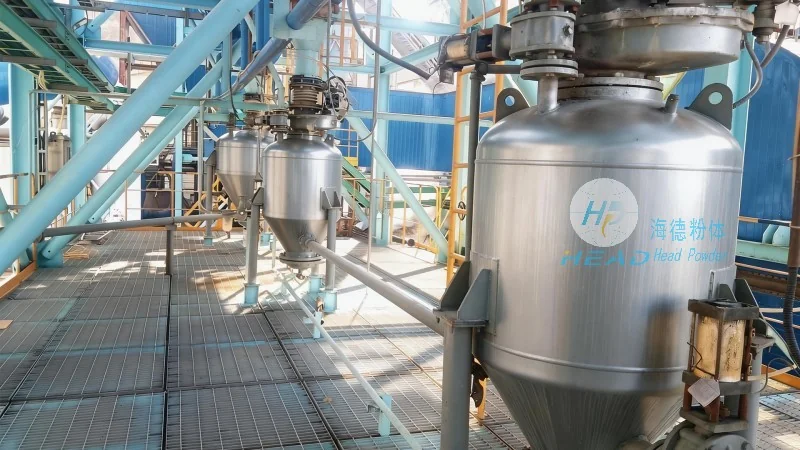

One of the key decisions in designing a PC particle pneumatic conveying solution is selecting the appropriate phase regime. For fragile or friable PC particles, dense-phase conveying is often preferred because it operates at lower air velocities, typically between 2 and 8 meters per second, which drastically reduces the impact force on the granules. Shandong Headpowder Engineering Co., Ltd. offers a proprietary dense-phase system that uses a pressure vessel to push the material slug by slug through the pipeline, minimizing particle breakage and wear on the pipe walls. Conversely, for high-capacity applications where the material can withstand moderate impact, dilute-phase conveying at velocities of 15 to 30 meters per second provides a cost-effective solution with higher throughput rates. The company’s engineers perform a thorough material analysis—including particle size distribution, bulk density, and moisture content—before recommending the optimal conveying mode. This data-driven approach ensures that the system delivers the specified flow rate while maintaining the quality of the PC particles throughout the entire conveying cycle.

System Integration and Automation Features

Modern manufacturing environments require smart integration, and the PC particle conveying system from Shandong Headpowder Engineering Co., Ltd. is fully compatible with SCADA, PLC, and distributed control systems. The control panel features a touchscreen interface that displays real-time data on air pressure, material flow rate, and system status, allowing operators to monitor performance and quickly diagnose any anomalies. The system can be programmed to automatically sequence the conveying of multiple material grades, switch between different receiving stations, and adjust the conveying speed based on downstream demand. For facilities that handle both virgin and regrind PC materials, the system includes dedicated purge circuits to prevent cross-contamination. Additionally, the integration of load cells on the storage hoppers enables precise inventory tracking, reducing waste and ensuring that production lines never run out of material. This level of automation not only improves operational efficiency but also reduces the need for manual intervention, which is a significant advantage in environments with limited personnel.

Application Examples in the Plastics Industry

The PC particle pneumatic conveying solution finds extensive application in injection molding, extrusion, and compounding operations. For instance, a large-scale automotive parts manufacturer that produces headlamp lenses from PC resin relies on the system to transport granules from central silos to 30 injection molding machines across a 500-meter distance. The dense-phase design ensures that the optical clarity of the material is preserved, and the integrated dust collection system maintains a clean workshop environment. Another example involves a compounding plant that blends PC with additives such as flame retardants or UV stabilizers; the PC particle conveying system accurately meters each component into the mixer, achieving consistent formulation ratios. The system’s ability to handle both virgin pellets and recycled regrind without clogging or segregation makes it a versatile tool for circular economy initiatives. Shandong Headpowder Engineering Co., Ltd. has also customized the system for food-contact applications by using FDA-compliant materials and sanitary welding finishes, demonstrating the flexibility of the core design.

Technical Support and After-Sales Service

Shandong Headpowder Engineering Co., Ltd. is headquartered in Shandong, China, and serves clients worldwide with a comprehensive service package. The company’s team of application engineers works closely with clients during the design phase to ensure that the PC particle pneumatic conveying system fits within the existing footprint and meets all compliance requirements. After installation, the company provides detailed operation manuals, on-site training for operators, and a 24/7 remote diagnosis service. Spare parts such as rotary valves, filter cartridges, and wear sleeves are stocked in the main warehouse to minimize downtime in the event of wear or failure. For any inquiries related to system design, performance optimization, or troubleshooting, you may contact Mr. Zhang, the project manager, via WeChat at 15662777102. Mr. Zhang and his team are available to discuss your specific material handling needs and provide a tailored quotation. The company’s long-standing presence in the pneumatic conveying industry, combined with its focus on continuous innovation, makes it a reliable partner for any PC particle transport project.

Contact Information for Further Details

To learn more about how the PC particle conveying system can enhance your production line, please reach out to the dedicated sales team at Shandong Headpowder Engineering Co., Ltd. The company’s principal contact is Mr. Zhang, who can be reached through WeChat at 15662777102. Whether you need a new system from scratch, an upgrade to an existing line, or simply a feasibility study, Mr. Zhang will guide you through the process. The company’s address is in Shandong, China, and all correspondence is handled in English or Chinese as needed. With a focus on delivering high-quality, cost-effective solutions, Shandong Headpowder Engineering Co., Ltd. remains committed to providing the best PC particle pneumatic conveying technology on the market. Do not hesitate to get in touch for a personalized consultation.
