Headpowder (Shandong Headpowder Engineering Co., Ltd.) is a professional engineering firm that specializes in designing and manufacturing high-performance pneumatic conveying systems for bulk solid materials. Among our core offerings, the Sodium Bicarbonate Pneumatic Conveying system stands out as a reliable, efficient, and dust-free solution for handling sodium bicarbonate powder in various industries. Whether you need a simple Sodium Bicarbonate Conveying line or a complete Sodium Bicarbonate Conveying System integrated with storage, dosing, and dust collection, Headpowder delivers turnkey solutions tailored to your site conditions. Our headquarters are located in Shandong, China, and we serve clients worldwide. For any inquiries, please contact Manager Zhang via WeChat: 15662777102.

Product Overview

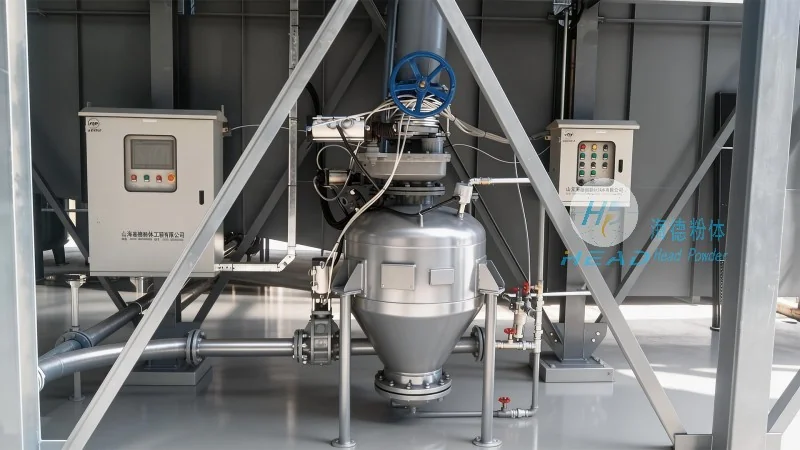

The Headpowder Sodium Bicarbonate Pneumatic Conveying system is engineered to transport sodium bicarbonate powder from one point to another through a sealed pipeline using compressed air or inert gas. This method eliminates dust emission, reduces product waste, and ensures operator safety. Sodium bicarbonate is widely used in flue gas treatment (dry sorbent injection), food processing, pharmaceuticals, and water treatment. Our system is designed to handle the specific flow characteristics of sodium bicarbonate, which is abrasive, hygroscopic, and prone to caking if not properly managed. The Sodium Bicarbonate Conveying System incorporates special features such as moisture-proof silos, anti-caking agitators, and wear-resistant pipe bends to maintain stable flow and minimize maintenance.

System Design and Components

A typical Headpowder Sodium Bicarbonate Pneumatic Conveying solution includes the following key components:

• Storage Silo: Constructed from stainless steel or carbon steel with a conical bottom to promote mass flow. The silo is equipped with a dust collector, level indicators, and aeration pads to prevent bridging.
• Rotary Valve or Screw Feeder: Accurately meters the sodium bicarbonate powder into the conveying line. For abrasive materials, we use hardened steel or ceramic-lined rotors to extend service life.
• Conveying Pipeline: Designed with smooth interior surfaces and gentle bends to reduce pressure drop and wear. We offer both dilute phase and dense phase conveying modes depending on the required capacity and distance.
• Receiver or Destination Tank: Separates the conveyed material from the conveying air using a cyclone separator or a bag filter. The material is then discharged into a hopper or directly into the process.
• Control System: PLC-based automation with touchscreen HMI, allowing operators to monitor flow rate, pressure, and system status in real time. The system can be integrated with existing plant DCS.

Every Sodium Bicarbonate Conveying system is customized after a thorough analysis of the material properties, conveying distance, elevation changes, and required throughput. Headpowder’s engineers use computational fluid dynamics (CFD) to optimize pipe routing and minimize energy consumption.

Advantages of Headpowder’s Pneumatic Conveying for Sodium Bicarbonate

Choosing Headpowder’s Sodium Bicarbonate Pneumatic Conveying solution brings multiple benefits:

• Dust-Free Operation: The closed system prevents sodium bicarbonate dust from escaping into the working environment, protecting workers’ health and meeting strict environmental regulations.
• Low Product Degradation: Gentle conveying at controlled velocities minimizes particle breakage and maintains the chemical reactivity of the sodium bicarbonate.
• Flexible Layout: Pipes can be routed overhead, underground, or around obstacles, making it ideal for retrofitting existing plants.
• Reduced Maintenance: Wear-resistant materials and modular design simplify maintenance and reduce downtime. The system is also easy to clean when switching between different products.
• Energy Efficiency: Dense phase conveying uses less air per ton of material, lowering compressed air consumption and operating costs.

Headpowder has installed hundreds of Sodium Bicarbonate Conveying Systems across Asia, Europe, and the Americas. Our systems are known for their long-term reliability even under harsh conditions. For more information on how we can design a system for your facility, reach out to Manager Zhang directly via WeChat: 15662777102.

Applications in Key Industries

The Sodium Bicarbonate Pneumatic Conveying system is particularly valuable in the following applications:

• Flue Gas Desulfurization (FGD) and Dry Sorbent Injection: Sodium bicarbonate is injected into exhaust ducts to neutralize acid gases. Our conveying system ensures precise dosing and uniform distribution.
• Food and Pharmaceutical Manufacturing: Sodium bicarbonate is used as a leavening agent, pH regulator, and cleaning agent. The system meets hygienic design standards with easy clean-in-place (CIP) capabilities.
• Water Treatment: For pH adjustment and alkalinity control, our system delivers sodium bicarbonate powder directly to mixing tanks.
• Chemical Processing: As a raw material in detergents, fire extinguishers, and personal care products, the conveying system integrates seamlessly with batching and blending equipment.

In each application, the Sodium Bicarbonate Conveying System is designed to handle the specific material characteristics and process requirements, ensuring consistent performance and minimal downtime.

Technical Specifications and Customization

Headpowder offers both dilute phase and dense phase pneumatic conveying for sodium bicarbonate. Typical specifications include:

• Conveying capacity: 0.5 to 50 tons per hour (customizable)
• Conveying distance: up to 500 meters (single line)
• Pipeline diameter: 50 mm to 300 mm
• Operating pressure: 0.2 to 6 bar (gauge)
• Material temperature: up to 120°C

We also provide optional accessories such as automatic bag slitters, vibratory sieves, metal detectors, and dust collection systems. Every Sodium Bicarbonate Pneumatic Conveying solution is backed by Headpowder’s engineering team, which offers on-site installation supervision, commissioning, and training. Our after-sales service includes spare parts supply and remote troubleshooting.

Why Choose Shandong Headpowder Engineering Co., Ltd.?

Shandong Headpowder Engineering Co., Ltd. (Headpowder) has been a leader in solids handling technology since our founding. With a dedicated R&D center and a manufacturing facility in Shandong, China, we have the capability to deliver complete projects from concept to completion. Our team understands the nuances of conveying sodium bicarbonate, from its tendency to absorb moisture to its abrasive nature. We have developed proprietary solutions such as pinch valves with ceramic liners and self-cleaning filter elements that extend the life of the Sodium Bicarbonate Conveying System. When you partner with Headpowder, you get more than just equipment—you get a long-term partner committed to your success. For project inquiries, please contact Manager Zhang by WeChat: 15662777102.

Contact Information

For a free consultation and a detailed proposal for your Sodium Bicarbonate Pneumatic Conveying project, feel free to reach out to us. Our contact person is Manager Zhang, and you can communicate via WeChat at 15662777102. We look forward to discussing how Headpowder’s advanced conveying technology can improve your production efficiency and product quality. Shandong Headpowder Engineering Co., Ltd. – your trusted partner in bulk material handling.
