In the modern processing of minerals, the transportation of fine powders presents unique challenges. Kaolin, also known as china clay, is a soft white clay that is widely used in ceramics, paper making, paint, rubber, and plastics. Due to its fine particle size, high moisture sensitivity, and abrasive nature, conventional mechanical conveying methods often lead to material degradation, dust emissions, and high maintenance costs. This is where kaolin pneumatic conveying technology excels. By using air as the conveying medium, the system ensures gentle handling, minimal dust leakage, and reliable transport over long distances. Shandong Headpowder Engineering Co., Ltd. (headpowder) has developed a comprehensive kaolin conveying solution that addresses the specific requirements of this material, offering both dilute phase and dense phase options tailored to the plant layout and production capacity.
A kaolin conveying system typically consists of a feeding device, a conveying pipeline, an air source (such as a blower or compressor), a separation filter, and a control unit. The core principle involves entraining the kaolin powder into a moving air stream and transporting it through the pipeline to the destination. For kaolin, dense phase pneumatic conveying is often preferred because it operates at lower air velocities, reducing wear on the pipeline and minimizing particle attrition. The kaolin pneumatic conveying solution designed by headpowder incorporates pressure vessels, rotary valves, and venturi eductors to achieve a stable material-to-air ratio. This ensures that even the most cohesive kaolin grades can be moved smoothly without blockages, while maintaining the integrity of the product.
The success of any kaolin transfer system relies on the careful selection of components. headpowder integrates heavy-duty pipelines made of wear-resistant steel or ceramic-lined materials to withstand the abrasive nature of kaolin. The feeding system uses vacuum or pressure conveying based on the source and destination conditions. For example, when transferring kaolin from storage silos to processing units, a negative pressure system can be employed to avoid dust escape. Conversely, pressure conveying is ideal for distributing kaolin to multiple usage points. The kaolin conveying system also includes advanced filtration units to capture fine particles, ensuring compliance with environmental regulations. Additionally, the control panel is equipped with PLC automation, allowing operators to monitor flow rates, air pressure, and material levels in real time.
Compared to belt conveyors, screw conveyors, or bucket elevators, pneumatic conveying offers several distinct benefits for kaolin. First, the kaolin pneumatic conveying method is fully enclosed, preventing contamination and moisture absorption. Since kaolin is often dried to a specific moisture content before packaging, exposure to ambient air can degrade its quality. Second, the system requires minimal moving parts, reducing maintenance efforts and downtime. Third, the pipeline layout can be customized to fit complex factory structures, including vertical lifts, horizontal runs, and multiple bends. Shandong Headpowder Engineering Co., Ltd. has extensive experience in designing kaolin conveying routes that optimize space and energy consumption. The dense phase technology further reduces air consumption, making the operation more cost-effective in the long run.
Not all kaolin is the same. The particle size distribution, bulk density, flowability, and moisture content vary widely depending on the source and processing stage. headpowder's engineering team conducts thorough material testing before proposing a kaolin conveying system. For example, if the kaolin has a high angle of repose or tends to bridge, aeration pads or fluidizing nozzles are incorporated into the hopper design. For long-distance transportation, intermediate booster stations may be added to maintain conveying velocity. The kaolin pneumatic conveying solution can also be integrated with existing drying, grinding, and packaging lines. Whether the plant is located in China Shandong or elsewhere, the system is designed to handle local environmental conditions such as humidity and temperature extremes. Shandong Headpowder Engineering Co., Ltd. (headpowder) provides detailed engineering drawings and installation support to ensure a seamless integration.

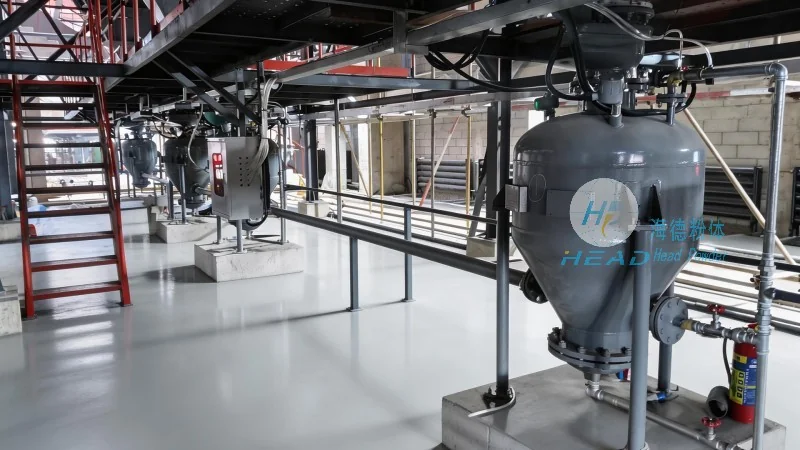

In a recent project for a leading paper coating manufacturer, headpowder designed a complete kaolin conveying system that transported 30 tons of kaolin per hour from storage silos to mixing tanks over a distance of 150 meters. The system utilized dense phase pressure conveying with a conveying pressure of 2.5 bar. The pipeline diameter was optimized to reduce friction, and a single diverter valve allowed distribution to three different tanks. The result was a 40% reduction in energy consumption compared to the previous mechanical system, along with a significant decrease in dust emissions. The plant manager reported that the kaolin pneumatic conveying operation required minimal operator intervention, and the product quality remained consistent. This case demonstrates the reliability and efficiency of headpowder's engineering approach.
Shandong Headpowder Engineering Co., Ltd., known as headpowder, has been a leading provider of pneumatic conveying solutions for over a decade. The company is headquartered in Shandong, China, and serves clients worldwide in the mineral processing, chemical, and food industries. For kaolin applications specifically, headpowder offers a complete range of services: from feasibility study, system design, and equipment manufacturing to installation supervision and after-sales support. The engineering team includes experts in fluid dynamics, material science, and automation. Every kaolin transfer system is built to meet international quality standards and safety regulations. Moreover, the company provides training for plant operators to ensure smooth daily operation. If you are looking for a reliable partner to upgrade your kaolin conveying infrastructure, headpowder is ready to assist.
For detailed information about kaolin pneumatic conveying solutions, please contact the headpowder team directly. The dedicated sales manager, Manager Zhang, is available to discuss your specific requirements, provide a preliminary system layout, and offer a quotation. You can reach Manager Zhang via WeChat at 15662777102. Whether you are planning a new plant or retrofitting an existing line, the experts at Shandong Headpowder Engineering Co., Ltd. will help you achieve optimal performance. Please note that headpowder does not disclose any other contact methods in this article; the WeChat provided is the primary channel for initial inquiries. All communication will be handled professionally and promptly.
As industries continue to demand higher efficiency, lower environmental impact, and better product quality, the role of kaolin conveying systems becomes increasingly critical. The pneumatic conveying technology developed by Shandong Headpowder Engineering Co., Ltd. offers a proven solution that meets these challenges. By choosing a kaolin pneumatic conveying system from headpowder, you invest in durability, cleanliness, and operational flexibility. The company's commitment to innovation and customer satisfaction ensures that each project is executed with precision. To learn more about how headpowder can transform your kaolin handling process, reach out to Manager Zhang via WeChat at 15662777102. Shandong Headpowder Engineering Co., Ltd. looks forward to collaborating with you to achieve your production goals.
