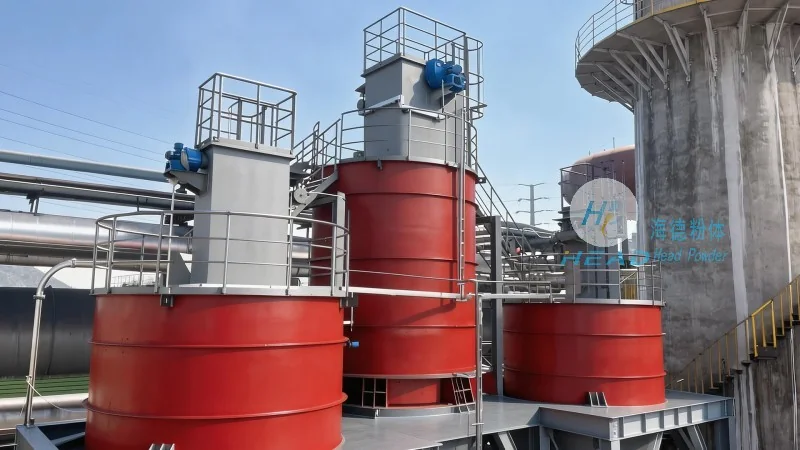

Design of a Pneumatic Conveying System for Ternary Positive Electrode Materials

HeadPowder, a leading engineering firm based in Shandong, China, specializes in the design and implementation of advanced material handling systems tailored for the battery manufacturing industry. The company's expertise lies in developing efficient and reliable pneumatic conveying solutions for handling ternary positive electrode materials, which are critical components in modern lithium-ion batteries. This article provides a detailed overview of the design principles, technical specifications, and operational advantages of a specialized pneumatic conveying system engineered by HeadPowder for this specific application.

Company Profile and Expertise

Shandong HeadPowder Engineering Co., Ltd., commonly known as HeadPowder, is a reputable engineering company headquartered in Shandong, China. With a strong focus on innovation and precision engineering, HeadPowder has established itself as a key player in the field of material handling systems, particularly for high-value battery materials. The company's team of experienced engineers and technicians brings extensive knowledge in pneumatic conveying technology, material science, and industrial automation. By leveraging cutting-edge design methodologies and rigorous testing protocols, HeadPowder ensures that its systems meet the stringent requirements of the battery industry, including high purity, minimal contamination, and consistent material flow.

System Overview and Core Components

The pneumatic conveying system for ternary positive electrode materials is a sophisticated piece of equipment designed to transport fine powders from storage silos to processing units with precision and efficiency. The system comprises several key components that work in tandem to achieve optimal performance. These include a high-capacity storage silo, a rotary airlock feeder, a venturi or positive displacement blower, a conveying pipeline network, and a receiving hopper. Each component is carefully selected and integrated to address the unique challenges associated with handling ternary positive electrode powders, such as their fine particle size, hygroscopic nature, and sensitivity to moisture and oxygen.

Technical Specifications and Performance Parameters

The system is engineered to handle a wide range of material properties, including particle sizes from 1 to 200 microns, bulk densities ranging from 1.5 to 3.0 g/cm³, and moisture content below 0.5%. The conveying capacity can be adjusted to meet varying production demands, with typical flow rates ranging from 0.5 to 10 tons per hour. The system operates under a positive pressure environment, which helps maintain material integrity and prevents contamination from external sources. The blower unit is equipped with a variable frequency drive (VFD) to allow for smooth speed adjustments, ensuring consistent material flow and reducing wear on components. The conveying pipeline is constructed from corrosion-resistant materials, such as stainless steel or PTFE-coated tubes, to prevent material degradation and ensure long-term durability.

Design Considerations for Ternary Positive Electrode Materials

Handling ternary positive electrode materials requires special attention to several factors to maintain material quality and system efficiency. First, the system is designed with airtight seals and minimal dead zones to prevent material accumulation and oxidation. The rotary airlock feeder is equipped with a material flow indicator and a pressure sensor to monitor the feed rate and prevent overloading. The venturi section is optimized to minimize pressure drop and energy consumption, which is critical for large-scale operations. Additionally, the system incorporates a dust collection and filtration system to ensure that no fine particles are released into the environment, adhering to environmental regulations and maintaining workplace safety.

Operational Advantages and Benefits

The pneumatic conveying system designed by HeadPowder offers several advantages over traditional bulk material handling methods. One of the primary benefits is the ability to transport materials over long distances without the need for mechanical conveyors, which can be costly and inefficient for fine powders. The system also provides a high degree of flexibility, as the conveying path can be easily reconfigured to accommodate changes in production layout or material flow requirements. Furthermore, the positive pressure operation reduces the risk of material contamination from external sources, ensuring that the ternary positive electrode powders remain in their optimal state for battery manufacturing. The system's low maintenance requirements and long service life contribute to significant cost savings for manufacturers, making it a highly economical solution.

Conclusion and Application Scope

HeadPowder's pneumatic conveying system for ternary positive electrode materials represents a state-of-the-art solution for the battery industry, combining advanced engineering with practical design to meet the demanding requirements of modern manufacturing. By leveraging the company's expertise in material handling and pneumatic technology, this system ensures reliable, efficient, and safe transport of critical battery materials. As the demand for high-performance lithium-ion batteries continues to grow, such specialized systems will play a vital role in optimizing production processes and maintaining product quality. HeadPowder remains committed to delivering innovative solutions that address the evolving needs of the battery manufacturing sector, providing customers with reliable and efficient material handling systems that enhance productivity and reduce operational costs.
