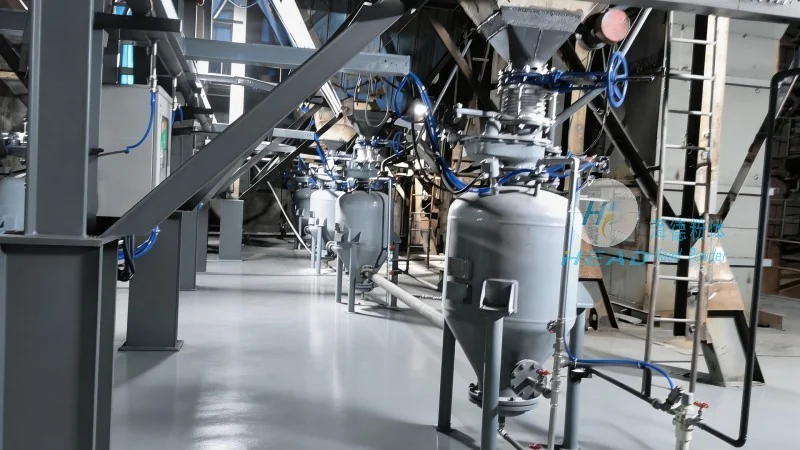

In the modern industrial processing of advanced materials, efficient and reliable material handling systems are critical to maintaining product quality, operational safety, and overall productivity. One of the most demanding materials in this domain is silicon carbon powder, which requires specialized conveying technology due to its fine particle size, abrasive nature, and potential for dust generation. Shandong Headpowder Engineering Co., Ltd. (referred to as headpowder) has developed a comprehensive silicon carbon powder pneumatic conveying solution that addresses these challenges head-on. This solution is designed to transport silicon carbon powder from storage to processing points with minimal degradation, zero contamination, and maximum energy efficiency. The system integrates advanced pneumatic principles, robust construction materials, and intelligent control mechanisms to ensure consistent performance even under the most demanding conditions. Whether the application involves batch transfer, continuous feeding, or long-distance conveying, the headpowder pneumatic system delivers reliable results. The silicon carbon powder conveying process is optimized to prevent blockages, reduce wear on equipment, and maintain a clean working environment. By leveraging decades of engineering experience in powder handling, headpowder offers a tailored approach that meets the unique requirements of each customer's production line. The entire system is built around the core principle of preserving the physical and chemical properties of silicon carbon powder while achieving high throughput rates. This makes it an ideal choice for industries such as battery material manufacturing, advanced ceramics, refractory production, and silicon-based composite processing.

Core Features of the Silicon Carbon Powder Conveying System

The silicon carbon powder conveying system from headpowder is engineered with several distinctive features that set it apart from conventional conveying equipment. First, the system employs a closed-loop pneumatic design that eliminates dust emissions, protecting both personnel and the environment. This is particularly important for silicon carbon powder, which can be hazardous when inhaled. Second, the conveying pipeline is constructed from wear-resistant alloys and lined with ceramic or polymer materials to withstand the abrasive characteristics of silicon carbon particles. The system includes a high-efficiency airlock feeder that ensures uniform material flow and prevents backflow, maintaining consistent pressure throughout the conveying line. Third, the control system utilizes PLC-based automation with real-time monitoring of pressure, flow rate, and material density. Operators can adjust parameters remotely, making the silicon carbon powder pneumatic conveying process highly adaptable to varying production demands. The system also features a dedicated filtration unit that captures fine particles, allowing for material recovery and reducing waste. Additionally, the conveying line is designed with minimal bends and smooth transitions to reduce pressure drop and energy consumption. For applications requiring batch weighing or dosing, the system can be integrated with load cells and volumetric feeders to achieve precise material delivery. The entire silicon carbon powder conveying system is modular, allowing for easy expansion or reconfiguration as production needs evolve. headpowder's engineering team provides comprehensive support from initial design through installation and commissioning, ensuring that the system operates at peak efficiency from day one.

Technical Parameters and System Components

To fully understand the capabilities of the silicon carbon powder pneumatic conveying solution, it is essential to examine its key technical parameters. The system can handle material densities ranging from 0.3 to 2.0 g/cm³, with particle sizes from sub-micron to 5 mm. Conveying distances can extend up to 500 meters in a single stage, with vertical lifts of up to 50 meters. The conveying capacity typically ranges from 100 kg/h to 50,000 kg/h, depending on the specific configuration. The system operates at a conveying pressure of 0.2 to 0.6 MPa, using compressed air or nitrogen as the conveying medium. The main components include a material receiving hopper, a rotary airlock valve, a conveying pipeline, a cyclone separator, a dust collector, and a control panel. The rotary airlock valve is specially designed with wear-resistant blades and adjustable clearance to handle silicon carbon powder without leakage. The pipeline is available in various diameters from DN50 to DN300, with flanged or welded connections for easy maintenance. The dust collector uses pulse-jet cleaning technology to maintain high filtration efficiency, capturing particles as small as 0.5 microns. For the silicon carbon powder conveying process, headpowder also offers optional features such as inline moisture removal, metal detection, and automatic sampling systems. These additions enhance the overall reliability and quality control of the material handling operation. The entire system is designed to comply with international standards for safety, hygiene, and environmental protection, making it suitable for both domestic and export markets.

Application Scenarios and Industry Benefits

headpowder's silicon carbon powder conveying system is widely used in various industrial sectors where precise and clean material handling is required. In the lithium-ion battery industry, silicon carbon powder is a key component for anode materials, and the conveying system ensures that the powder is transferred without contamination or agglomeration. In the refractory industry, the system delivers silicon carbon powder to mixing stations where it is combined with binders and other additives to form high-performance refractory bricks. In the advanced ceramics sector, the pneumatic conveying system enables the automated feeding of silicon carbon powder into presses and kilns, improving production efficiency and reducing labor costs. The system also finds applications in the production of silicon-based composites, where uniform distribution of the powder is critical for product consistency. By using headpowder's silicon carbon powder pneumatic conveying solution, manufacturers can achieve significant benefits: reduced material waste, lower energy consumption compared to mechanical conveyors, minimized maintenance downtime, and improved workplace safety. The closed-loop design prevents dust leakage, which is particularly important in facilities handling fine powders that could pose explosion risks. Furthermore, the automated control system integrates seamlessly with existing plant automation, allowing for easy data logging and process optimization. For companies looking to scale up production, the modular nature of the system allows for incremental capacity increases without major capital investment. headpowder's team of engineers works closely with clients to customize the system layout, component selection, and control logic to match the specific material properties and plant constraints.

Why Choose headpowder for Your Silicon Carbon Powder Conveying Needs

Selecting the right partner for your silicon carbon powder conveying project is crucial for long-term success. Shandong Headpowder Engineering Co., Ltd. has established itself as a trusted name in the powder handling industry, with a proven track record of delivering high-quality systems to clients worldwide. The company's expertise covers not only pneumatic conveying but also mechanical conveying, dust collection, and powder processing equipment. headpowder's engineering team possesses deep knowledge of the physical properties of silicon carbon powder, including its flowability, abrasiveness, and electrostatic characteristics. This expertise allows them to design systems that avoid common pitfalls such as pipe clogging, material degradation, and component wear. The company uses advanced simulation software to model material flow and optimize pipeline layout before manufacturing, reducing the risk of performance issues. All equipment is fabricated in headpowder's ISO-certified manufacturing facility, ensuring strict quality control and adherence to specifications. After-sales support includes on-site installation guidance, operator training, and a comprehensive spare parts program. headpowder also offers remote monitoring and troubleshooting services to minimize downtime. For clients in China and abroad, the company provides fast response times and flexible payment terms. The headquarters is located in Shandong, China, with a dedicated sales and service team ready to assist with inquiries. To discuss your specific requirements or to request a quotation for a silicon carbon powder conveying system, please contact Manager Zhang via WeChat at 15662777102. headpowder looks forward to helping you achieve efficient, safe, and reliable material handling for your silicon carbon powder applications.

Contact Information

For more information about the silicon carbon powder pneumatic conveying solution or to schedule a consultation, please reach out to our team. Manager Zhang is available to answer your questions and provide technical support. You can add the WeChat account 15662777102 to connect directly. We welcome inquiries from all over the world and are committed to providing the best possible service for your powder handling needs. Shandong Headpowder Engineering Co., Ltd. is dedicated to innovation and quality in every project we undertake. Contact us today to learn how our silicon carbon powder conveying system can transform your production process.
