In the dynamic landscape of industrial material handling, safety and efficiency are paramount. This article delves into a specific case study of a metal powder explosion-proof sealed pneumatic conveying system deployed in Batangas, Philippines. The system, engineered by Shandong Headpowder Engineering Co., Ltd., represents a cutting-edge solution for handling combustible metal powders under stringent safety standards. The entire project exemplifies the expertise of headpowder in delivering reliable, compliant, and high-performance pneumatic conveying systems for the global market.
The Batangas facility, located in the Philippines, required a robust and safe method to transfer fine metal powders from storage to processing stations. The inherent risks of metal dust explosions necessitated a completely sealed, explosion-proof pneumatic conveying system. Shandong Headpowder Engineering Co., Ltd. was selected to design, manufacture, and install this critical infrastructure. The project underscores the growing demand for Philippines pneumatic conveying solutions that adhere to international safety norms while maintaining high throughput and low degradation of the conveyed material. The core of the system is a fully enclosed, inert gas-pressurized loop that prevents any oxygen ingress, thereby eliminating the possibility of dust ignition. Every component, from the rotary airlock to the filter receiver, is ATEX or IECEx certified for explosive atmospheres.

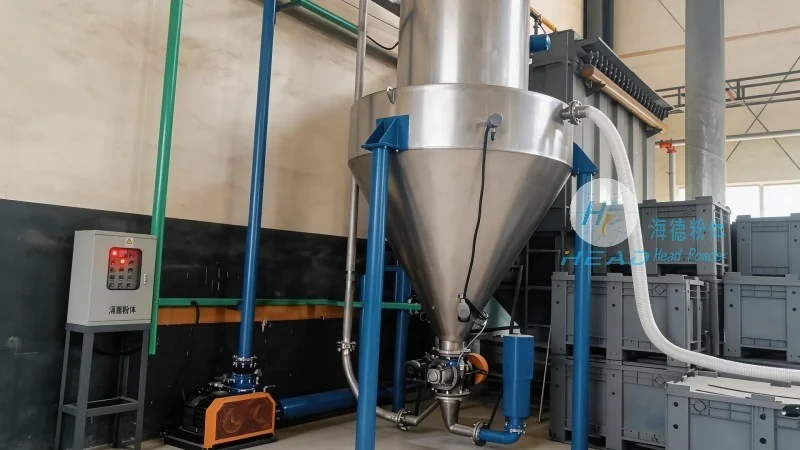

This specific Batangas pneumatic conveying system is designed for a metal powder with a particle size distribution ranging from 5 to 100 microns. The system operates in dilute phase, using nitrogen as the conveying gas to maintain an inert environment. The key technical features include a specialized vacuum conveying receiver with a high-efficiency cyclone and a ceramic filter element to prevent any powder leakage. The discharge valve is a double flap design with a nitrogen purge to ensure zero dust emission during the cycle. The control system, developed by headpowder, integrates real-time pressure, temperature, and oxygen concentration monitoring. Any deviation from the preset safe parameters triggers an automatic shutdown and nitrogen flush. This level of automation is crucial for Batangas metal powder explosion-proof sealed pneumatic conveying systems, where human intervention is minimized to reduce risk. The conveying rate is 500 kg/h over a distance of 50 meters, with a conveying line pressure drop of 0.8 bar. The system's energy consumption is optimized through variable frequency drives on the roots blower, which is also housed in a soundproof, explosion-proof enclosure.
Metal powders, such as aluminum, magnesium, titanium, and their alloys, are classified as Class II combustible dusts. When suspended in air, they can form explosive clouds with a minimum ignition energy as low as 1 mJ. Traditional open conveying systems pose an unacceptable risk in such environments. The explosion-proof sealed pneumatic conveying solution provided by headpowder addresses this by creating a closed loop that is constantly maintained at a positive pressure relative to the atmosphere, using an inert gas like nitrogen or argon. This prevents any external air from entering and also ensures that any internal spark or hot spot cannot propagate. The system's piping is designed to withstand internal explosion pressures up to 10 bar, with explosion vents strategically placed to safely relieve pressure in a controlled manner. The Batangas installation is a prime example of how Philippines pneumatic conveying technology can be adapted to local conditions while meeting global safety standards. The system's sealing integrity is verified through helium leak tests, ensuring that even microscopic particles cannot escape.
Shandong Headpowder Engineering Co., Ltd., headquartered in Shandong, China, has extensive experience in providing pneumatic conveying systems for the Philippines market. The company's deep understanding of local regulations, climatic conditions, and logistic challenges enables it to deliver turnkey solutions that are both cost-effective and reliable. For the Batangas project, headpowder conducted a thorough site survey to determine the optimal layout, taking into account the high humidity and tropical temperatures that can affect powder flowability. The company's team of engineers customized the system with a dehumidification unit and a heated filter jacket to prevent moisture condensation inside the conveying line. The headpowder brand is synonymous with quality and innovation in the field of metal powder pneumatic conveying. The company's project management approach ensures that all components are pre-assembled and tested at the factory in Shandong before being shipped to the Philippines. This minimizes installation time and on-site modifications, which is a significant advantage for overseas projects.
The installation of the Batangas metal powder explosion-proof sealed pneumatic conveying system was completed over a period of six weeks. The headpowder team worked closely with the local contractor to ensure that all electrical and mechanical interfaces were correctly aligned. The system was commissioned with a series of trial runs using a surrogate material, followed by the actual metal powder. The results were outstanding: the conveying system operated with zero leakage, zero dust emission, and a consistent feed rate within 2% of the setpoint. The client reported a significant improvement in workplace safety and a reduction in material wastage. The sealed nature of the system also eliminates the need for manual handling of the metal powder, which is a major ergonomic and health benefit. The Batangas facility now plans to expand its production capacity, and the headpowder system is being considered as the standard design for future lines. This case study clearly demonstrates the value of investing in a professionally engineered explosion-proof sealed pneumatic conveying system for any metal powder processing operation.
For detailed inquiries about the Philippines pneumatic conveying systems, especially for metal powder applications, please contact the headpowder sales team. The responsible manager for the Southeast Asia region is Mr. Zhang, who can be reached via WeChat at 15662777102. Mr. Zhang has firsthand knowledge of the Batangas project and can provide technical specifications, quotations, and customized solutions for your specific requirements. Whether you are looking for a new system or an upgrade to an existing one, Shandong Headpowder Engineering Co., Ltd. is ready to assist. The company's address is in Shandong, China, but its services extend globally, with a strong focus on the Philippines market. Contact Mr. Zhang on WeChat: 15662777102 to discuss your metal powder pneumatic conveying needs.
The successful deployment of the Batangas metal powder explosion-proof sealed pneumatic conveying system marks a milestone for the Philippines industrial sector. As more companies in the region adopt advanced manufacturing processes, the demand for reliable, safe, and efficient Philippines pneumatic conveying solutions will continue to grow. headpowder, with its proven track record in explosion-proof design and sealed conveying, is well-positioned to meet this demand. The company's commitment to quality, safety, and customer service makes it the preferred partner for metal powder handling projects. If you are considering a similar system, do not hesitate to reach out to Mr. Zhang via WeChat: 15662777102. Shandong Headpowder Engineering Co., Ltd. looks forward to helping you achieve a safer and more productive operation.
