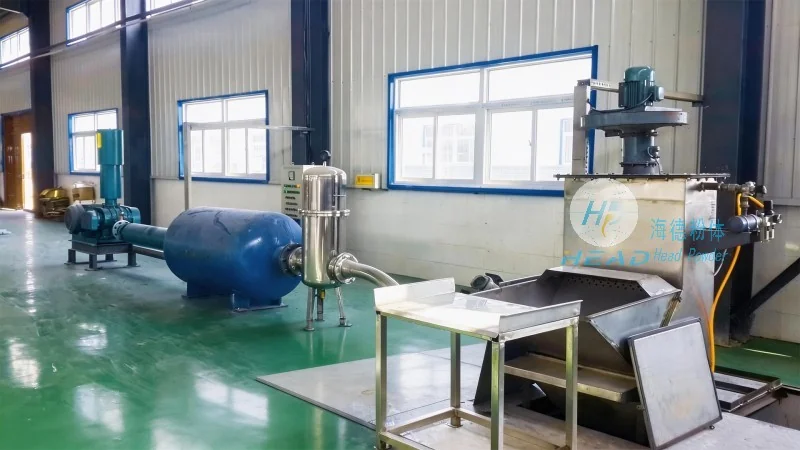

Shandong Headpowder Engineering Co., Ltd. (Headpowder) has successfully delivered a specialized high-purity pneumatic conveying system for alumina powder in Medina, Saudi Arabia. This project demonstrates the company's expertise in handling ultra-fine, abrasive, and contamination-sensitive materials within the Middle Eastern industrial environment. The installation was tailored to meet strict purity requirements while maintaining continuous, reliable operation under extreme desert conditions. The case study below outlines the key challenges, technical solutions, and measurable outcomes achieved through Headpowder's advanced engineering capabilities.
Located in the holy city of Medina, the client operates a high-purity alumina powder production line that supplies raw materials to the electronics and advanced ceramics industries. The facility required a fully enclosed, dust-free conveying system capable of transferring alumina powder from storage silos to process equipment over a distance of 120 meters with multiple elevation changes. The local climate—characterized by high ambient temperatures exceeding 50°C, frequent sandstorms, and low humidity—posed additional challenges for standard pneumatic conveying equipment. Headpowder was selected after a competitive bidding process because of its proven track record in Saudi Arabia pneumatic conveying projects and its deep understanding of Medina pneumatic conveying logistics. The company's previous installations in the Gulf region had demonstrated exceptional durability and low maintenance requirements, which aligned perfectly with the client's operational priorities.
Alumina powder pneumatic conveying presents unique difficulties due to the material's inherent properties. Alumina (Al₂O₃) has a high Mohs hardness of 9, making it extremely abrasive to pipe walls and rotary valves. Its fine particle size (d50 typically 2–5 microns) and low bulk density (around 0.8–1.2 g/cm³) cause it to fluidize easily, leading to potential segregation, dust explosions, and product contamination if not handled correctly. In this specific project, the client required a system that could maintain product purity at 99.99% or higher, with zero cross-contamination from metallic wear or lubricants. The conveying velocity had to be carefully controlled to avoid particle degradation, which would alter the powder's surface area and reactivity. Furthermore, the system needed to operate in a Class 1, Division 2 hazardous area due to the presence of fine combustible dust, demanding explosion-proof design and static grounding. Headpowder's engineering team conducted extensive material testing and computational fluid dynamics (CFD) simulations to optimize the pipeline routing, air-to-material ratio, and filter selection for this alumina powder pneumatic conveying application.
Headpowder deployed its proprietary high-purity pneumatic conveying technology, which integrates several key innovations to meet the stringent requirements of the Medina facility. The system uses a dense-phase, pressure-driven conveying approach with a specially designed blow tank (pressure vessel) lined with ceramic tiles to eliminate metal-to-metal contact. All conveying pipes are made of 316L stainless steel with internal surface roughness (Ra ≤ 0.4 µm) to minimize particle adhesion and facilitate cleaning. A nitrogen gas supply is used as the conveying medium instead of compressed air, preventing oxidation and moisture absorption. The nitrogen is pre-dried and filtered to 0.01 micron absolute, ensuring that no airborne contaminants enter the product stream. The system includes a high-efficiency cyclone separator followed by a sintered metal filter (absolute filtration down to 0.3 micron) to capture any fugitive dust. Importantly, the entire conveying loop is maintained under a slight positive pressure of nitrogen to prevent ambient dust ingress, a critical feature for high-purity pneumatic conveying in the dusty Saudi environment. The control system employs PLC-based logic with real-time monitoring of pressure, flow, temperature, and oxygen concentration, automatically shutting down the system if any parameter deviates from the set point. This level of automation ensures consistent product quality and operator safety without requiring constant manual intervention.
The system designed for the Medina project incorporates several features that make it a benchmark for Saudi Arabia pneumatic conveying installations. First, the pipeline layout uses a combination of horizontal sections with gentle bends (radius ≥ 10 pipe diameters) to reduce wear and pressure drop. Second, a dedicated purge sequence is programmed after each batch to clear residual powder from the line, preventing material buildup and cross-contamination between different grades. Third, the blow tank's discharge cone is equipped with a fluidizing nozzle that creates a controlled air cushion, enabling smooth discharge of the cohesive alumina powder without bridging. Fourth, the entire system is modular and skid-mounted, allowing for quick installation and future expansion without major civil works. Fifth, Headpowder integrated a remote diagnostic platform that allows the client's maintenance team to monitor system performance from anywhere in the world, generating predictive alerts for filter replacement, valve wear, or nitrogen consumption. These features collectively reduce the total cost of ownership while ensuring the highest level of product purity—a key requirement for any alumina powder pneumatic conveying operation.
After commissioning, the Medina system achieved a throughput of 5 tons per hour with less than 1% particle size degradation, maintaining the alumina powder's original particle size distribution and surface area. Regular purity testing showed zero detectable metal contamination (Fe, Cu, Ni, Cr) at sensitivities below 0.1 ppm, surpassing the client's 99.99% purity specification. The system ran continuously for 18 months without any unplanned downtime, except for scheduled maintenance every 6 months. The client reported a 30% reduction in energy consumption compared to their previous dilute-phase system, primarily due to the lower nitrogen requirement in dense-phase conveying. The installation also eliminated manual handling of powder bags, improving workplace safety and reducing labor costs by 40%. The project manager for the Medina facility stated: "Headpowder's solution has set a new standard for high-purity pneumatic conveying in our region. The reliability and purity level are unmatched." This successful case study has since led to two additional contracts for similar systems in other Saudi cities, reinforcing Headpowder's reputation as a trusted partner for Saudi Arabia pneumatic conveying and Medina pneumatic conveying projects.
Headpowder is a dedicated engineering company specializing in pneumatic conveying systems for fine powders, with a focus on high-purity and abrasive materials. Headquartered in Shandong, China, the company has completed over 200 projects worldwide, including more than 30 installations in the Middle East. The team of experienced engineers provides turnkey solutions, from feasibility study and material testing to detailed design, fabrication, installation, commissioning, and after-sales support. For inquiries about this case study or any future pneumatic conveying needs, please contact the sales manager: Mr. Zhang (Manager Zhang). WeChat: 15662777102. Headpowder welcomes opportunities to discuss how its proven technology can be adapted to your specific material handling requirements, whether for alumina, silica, titanium dioxide, or other high-value powders requiring strict contamination control.
