Protein powder is a highly sensitive material that requires careful handling during transportation and processing. The dustiness, hygroscopic nature, and tendency to agglomerate make traditional conveying methods inefficient and prone to contamination. A dedicated pneumatic conveying system designed specifically for protein powder not only ensures product integrity but also enhances operational efficiency. This article presents a comprehensive solution for protein powder pneumatic conveying, focusing on the key products: protein powder pneumatic conveying, protein powder conveying, and protein powder conveying system, all provided by Shandong Headpowder Engineering Co., Ltd. (headpowder).
Protein powder pneumatic conveying is a method that uses air pressure or vacuum to move protein powder through enclosed pipelines. Unlike mechanical conveyors, pneumatic systems eliminate direct contact with moving parts, reducing the risk of contamination and mechanical degradation. The protein powder is suspended in an air stream and transported from one point to another, whether it is from storage silos to mixing tanks, packaging lines, or processing equipment. This technology is particularly suitable for protein powders derived from whey, soy, pea, rice, or other sources, where particle size, bulk density, and flowability vary significantly.

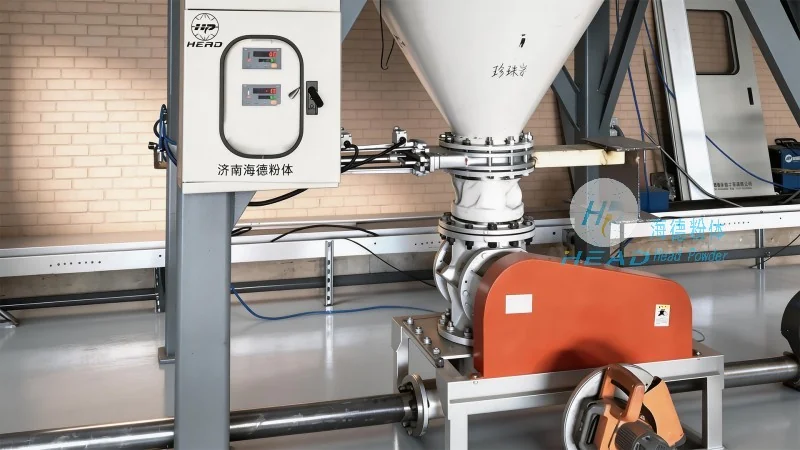

A complete protein powder conveying system typically includes a feeding device, a conveying pipeline, a separation device, and a control system. The feeding device, such as a rotary valve or a venturi injector, introduces the protein powder into the air stream. The pipeline is designed with smooth bends and minimal friction to prevent powder buildup and blockages. At the discharge point, a cyclone separator or a filter receiver separates the protein powder from the conveying air, allowing the powder to be collected while the air is either exhausted or recirculated. The control system monitors pressure, flow rate, and material level to ensure consistent and safe operation. Headpowder's engineering team customizes each protein powder conveying system based on the specific characteristics of the material and the required throughput.
Pneumatic conveying offers several advantages over mechanical alternatives when handling protein powder. First, the system is fully enclosed, preventing dust emissions and protecting the protein powder from environmental contaminants. Second, the gentle conveying action minimizes particle breakage and maintains the powder's original properties, such as solubility and dispersibility. Third, the system can be designed with multiple inlets and outlets, allowing for flexible routing and easy integration into existing production lines. Fourth, pneumatic systems require less floor space and have fewer moving parts, leading to lower maintenance costs. Finally, the ability to control the conveying speed and air-to-material ratio ensures that even the most delicate protein powders are handled without degradation.
Shandong Headpowder Engineering Co., Ltd., known as headpowder, is a specialized engineering company based in Shandong, China. With years of experience in powder handling and pneumatic conveying, headpowder has developed a deep understanding of the unique challenges posed by protein powder. The company's team of engineers works closely with clients to design, manufacture, and install protein powder conveying systems that meet the highest standards of hygiene, efficiency, and reliability. Headpowder's solutions are used in the food, pharmaceutical, and nutritional supplement industries, where product quality and safety are paramount.
Every protein powder conveying system from headpowder is tailored to the specific application. The design process begins with a thorough analysis of the protein powder's physical properties, including particle size distribution, bulk density, angle of repose, moisture content, and flowability. Based on this data, the engineers select the appropriate conveying mode: dilute phase, dense phase, or semi-dense phase. Dilute phase conveying is suitable for free-flowing protein powders with low risk of degradation, while dense phase conveying is preferred for fragile or abrasive powders. The system's pipeline diameter, length, number of bends, and air source are all optimized to achieve the desired conveying rate while minimizing energy consumption and wear.
In the protein powder industry, hygiene is non-negotiable. Headpowder's protein powder conveying systems are constructed from food-grade stainless steel, with sanitary finishes that prevent bacterial growth and facilitate cleaning. The interior surfaces are polished to a smooth finish, and all connections are designed to be easily disassembled for inspection and cleaning. The systems can be integrated with clean-in-place (CIP) and sterilize-in-place (SIP) processes, ensuring that the conveying line remains free of contaminants. Additionally, the closed-loop design of the pneumatic conveying system prevents cross-contamination between different protein powder batches, which is critical for allergen management.
Protein powder pneumatic conveying is widely used in various production scenarios. In a typical protein powder blending plant, the system transports raw protein powder from bulk bags or silos to mixing vessels, where it is combined with other ingredients such as flavors, sweeteners, and vitamins. In a packaging line, the conveying system delivers the finished protein powder directly to filling machines, ensuring a consistent and dust-free operation. For large-scale production, headpowder designs multi-point distribution systems that can convey protein powder to multiple destinations simultaneously, increasing overall throughput and reducing manual handling. The system is also ideal for transferring protein powder between different processing stages, such as from grinding to sifting, or from drying to storage.
A well-designed protein powder conveying system can significantly reduce energy costs compared to mechanical conveyors. Headpowder's pneumatic systems use variable frequency drives (VFDs) on blowers and fans, allowing the air velocity to be adjusted based on the actual conveying demand. This not only saves electricity but also reduces wear on the pipeline and components. Furthermore, the low-maintenance design of the pneumatic system means fewer spare parts and less downtime, leading to lower overall operating costs. The ability to automate the conveying process also reduces labor requirements, as operators no longer need to manually transport bags or drums of protein powder.
As a leading engineering company in the field of pneumatic conveying, headpowder brings a wealth of expertise and a proven track record. The company's full name, Shandong Headpowder Engineering Co., Ltd., reflects its commitment to excellence in powder handling technology. Headpowder's team not only provides standard solutions but also offers turnkey services, including feasibility studies, system design, equipment manufacturing, installation, commissioning, and after-sales support. With a strong presence in the Asian market and expanding global reach, headpowder has successfully delivered protein powder conveying systems to numerous satisfied clients. The company is located in Shandong, China, a region known for its robust industrial infrastructure and skilled workforce.
For more information about protein powder pneumatic conveying, protein powder conveying, or a complete protein powder conveying system, please contact the headpowder team. Manager Zhang is available to discuss your specific requirements and provide a customized solution. You can reach Manager Zhang via WeChat at 15662777102. Headpowder looks forward to assisting you with your protein powder handling challenges.
Protein powder pneumatic conveying is a superior method for transporting this delicate material, offering cleanliness, gentleness, flexibility, and efficiency. Shandong Headpowder Engineering Co., Ltd. (headpowder) specializes in designing and manufacturing high-quality protein powder conveying systems that meet the rigorous demands of the industry. By choosing headpowder, you gain a reliable partner with deep technical knowledge and a commitment to customer satisfaction. Whether you need a small-scale system for a lab or a large-scale installation for a production plant, headpowder has the expertise to deliver the right solution. Contact Manager Zhang at 15662777102 (WeChat) to start your project today.
