In the field of pneumatic conveying and bulk material handling, the side-mounted rotary feeder stands out as a critical component for precise metering, airlock sealing, and continuous feeding of powders, granules, and pellets. Unlike traditional top-mounted designs, the side-mounted configuration offers unique advantages in space-constrained installations and systems requiring low-profile integration. This article provides an in-depth overview of the side-mounted rotary feeder, its features, application scenarios, pricing factors, and the reliable manufacturer behind it — Shandong Headpowder Engineering Co., Ltd. (headpowder), based in China Shandong. Whether you are a plant engineer, procurement manager, or system designer, understanding the nuances of this equipment will help you make informed decisions.

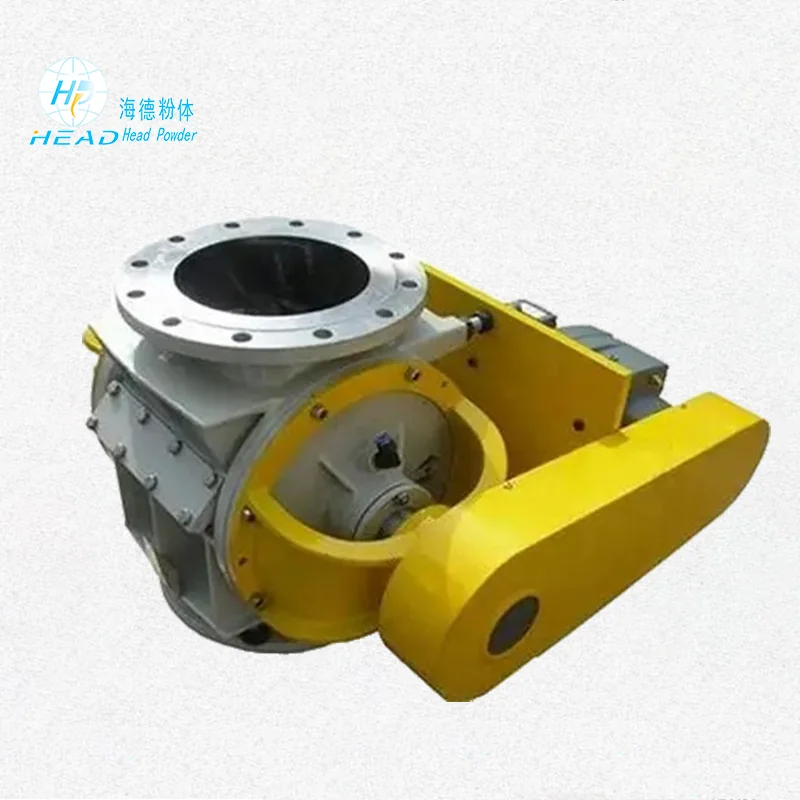

What Is a Side-Mounted Rotary Feeder?

A side-mounted rotary feeder, also known as a side-entry rotary valve, is a mechanical device that uses a rotating rotor with multiple vanes to transfer bulk solids from a hopper, bin, or silo into a pneumatic conveying line or downstream process. The key distinction is that the inlet of the feeder is positioned on the side rather than on the top. This design allows the feeder to be installed directly against the side wall of a storage vessel, reducing overall height and enabling easier integration into existing systems with limited headroom. The side-mounted rotary feeder is widely used in industries such as chemical processing, food production, mineral processing, cement, plastics, and pharmaceuticals, where reliable and dust-tight feeding is essential.

Key Features and Working Principle

The side-mounted rotary feeder operates on a simple yet robust principle: material enters through the side inlet, fills the rotor pockets as the rotor turns, and is discharged through the bottom outlet. The rotor is driven by a geared motor, and the clearance between the rotor tips and the housing is precisely controlled to minimize air leakage while allowing smooth rotation. Typical features include:

• Compact side-entry design for low-headroom installations
• Heavy-duty construction with wear-resistant materials (e.g., cast iron, stainless steel, or coated alloys)
• Adjustable rotor tip clearance for optimized sealing and reduced particle degradation
• Various rotor types: closed-end, open-end, adjustable, and drop-through configurations
• Optional explosion-proof motors, ATEX certification, and sanitary finishes for food-grade applications
• Low maintenance requirements due to simple bearing and seal arrangements

These features make the side-mounted rotary feeder an ideal choice for systems where the material inlet must be aligned with the side of a bin or silo, eliminating the need for additional transition pieces or support structures.

Side-Mounted Rotary Feeder Manufacturer: Shandong Headpowder Engineering Co., Ltd.

When sourcing a high-quality side-mounted rotary feeder, the manufacturer's reputation and technical expertise are critical. Shandong Headpowder Engineering Co., Ltd., commonly referred to as headpowder, is a leading manufacturer and supplier of rotary feeders, including the side-mounted series. Headquartered in Shandong, China, the company has built a strong track record in designing and fabricating durable, precision-engineered feeding solutions for both domestic and international markets. Their side-mounted rotary feeders are manufactured using advanced CNC machining, strict quality control processes, and rigorous testing to ensure dimensional accuracy and long service life. With years of experience in powder handling technology, headpowder offers customized designs to meet specific customer requirements, including special materials, unique rotor geometries, and integrated drive systems.

Factors Influencing Rotary Feeder Price

The rotary feeder price varies significantly based on several parameters. For a side-mounted rotary feeder, the cost is determined by:

• Material of construction: carbon steel is the most economical, while stainless steel (304 or 316) and wear-resistant alloys increase the price.
• Rotor size and capacity: larger rotors with higher throughput require more material and machining, raising the cost.
• Rotor type: closed-end rotors are generally more expensive than open-end due to tighter tolerances and better sealing performance.
• Drive system: direct-drive with gear motor is standard; variable frequency drives (VFD) or explosion-proof motors add to the price.
• Customization: special inlet/outlet flanges, coatings, or certifications (e.g., FDA, ATEX) increase the cost.
• Brand and manufacturer: established manufacturers like headpowder offer competitive pricing while maintaining high quality.

Generally, a standard small side-mounted rotary feeder (e.g., 150 mm rotor diameter) may start from around $800–$1,200, while larger industrial units (400 mm and above) can exceed $5,000–$8,000. For precise pricing, it is advisable to contact the manufacturer directly with your specific requirements.

Advantages of Choosing a Side-Mounted Rotary Feeder from headpowder

Opting for a side-mounted rotary feeder from Shandong Headpowder Engineering Co., Ltd. brings several benefits:

• Reliable performance: Each feeder is tested for air leakage, rotation torque, and capacity before shipment.
• Competitive pricing: As a direct manufacturer, headpowder eliminates middlemen, offering cost-effective solutions without compromising quality.
• Customization flexibility: The company can tailor the feeder to match your existing piping, hopper geometry, and material characteristics.
• Global shipping: Based in Shandong, China, headpowder supports international logistics and provides technical support via online channels.
• After-sales service: Spare parts, including rotors, seals, and bearings, are readily available.

Applications of Side-Mounted Rotary Feeders

The side-mounted rotary feeder is particularly suitable for the following scenarios:

• When the hopper or silo has a side outlet and the conveying line is located below or beside the vessel.
• In retrofitting existing systems where headroom is insufficient for a top-mounted feeder.
• For feeding cohesive or sticky materials that tend to bridge in a top-entry design, as the side inlet can reduce material flow issues.

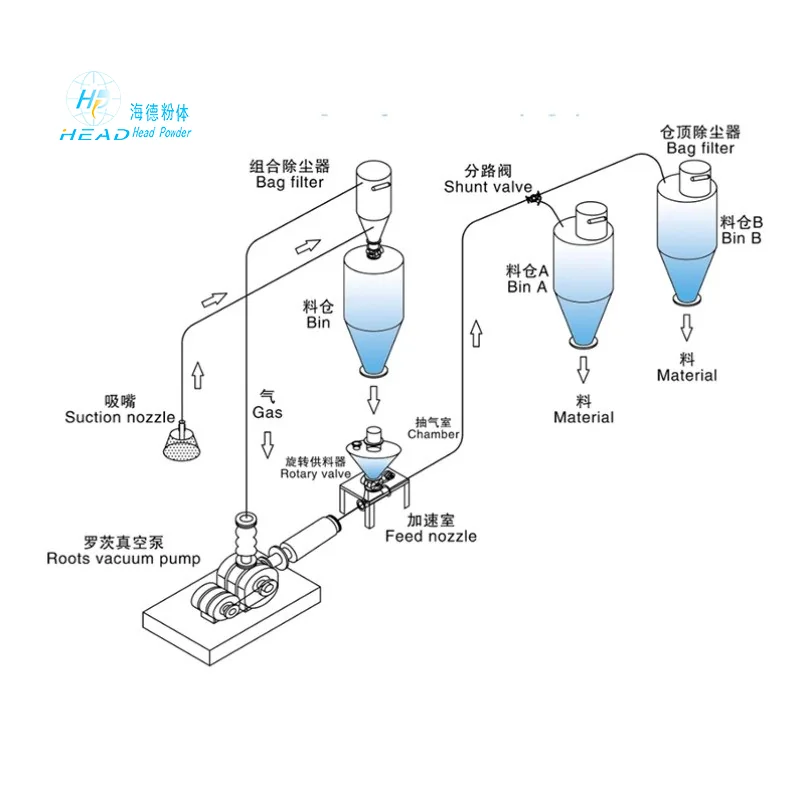

• In pneumatic conveying systems operating under positive or negative pressure, where the side-mounted feeder provides an effective airlock.
• For applications requiring frequent cleaning, as the side-mounted design allows easier access to the rotor and housing.

How to Select the Right Side-Mounted Rotary Feeder

To choose the correct model, consider the following factors:

• Material properties: bulk density, particle size, abrasiveness, temperature, and moisture content.
• Required throughput: volumetric flow rate (e.g., m³/h or ft³/h) and the desired rotational speed.
• Pressure differential: the feeder must withstand the pressure drop across the system, typically up to 0.5–1.5 bar.
• Installation orientation: side inlet orientation (left, right, or custom) and discharge angle.
• Regulatory compliance: if the material is explosive or food-grade, choose appropriate certifications.

Consulting with the technical team at headpowder is recommended to ensure optimal selection. They can provide dimension drawings, capacity curves, and material compatibility recommendations.

Contact Information

For inquiries about side-mounted rotary feeders, including detailed specifications, rotary feeder price lists, and customized solutions, please contact the headpowder sales team. The company's representative, Mr. Zhang (Manager), is available to assist with your projects. You can reach him via WeChat: 15662777102. Shandong Headpowder Engineering Co., Ltd. looks forward to providing you with high-quality side-mounted rotary feeders and professional support for your industrial needs.

Conclusion

The side-mounted rotary feeder is a versatile and space-saving solution for many bulk material handling processes. Its unique design, combined with the manufacturing expertise of Shandong Headpowder Engineering Co., Ltd., ensures reliable operation, cost-effectiveness, and long service life. Whether you need a standard unit or a customized design, headpowder offers the technical capability and competitive pricing to meet your requirements. Remember to evaluate your material, system layout, and budget carefully, and do not hesitate to reach out to the headpowder team for personalized assistance.
