Efficient, safe, and dust-free material handling is a critical requirement in industries dealing with fine, cohesive, and hygroscopic powders. Ferrous sulfate heptahydrate (FeSO₄·7H₂O) and its monohydrate variants are widely used in water treatment, agriculture, pigment production, and chemical synthesis. However, transporting these powders manually or with conventional mechanical conveyors often leads to caking, dust pollution, equipment corrosion, and product degradation. To address these challenges, Shandong Headpowder Engineering Co., Ltd. (headpowder) has developed a dedicated ferrous sulfate powder pneumatic conveying system that ensures gentle, enclosed, and continuous transfer from storage to process points. This article presents a comprehensive overview of the system design, operational principles, key benefits, and why headpowder stands out as a reliable partner for your powder handling needs.

System Overview and Core Components

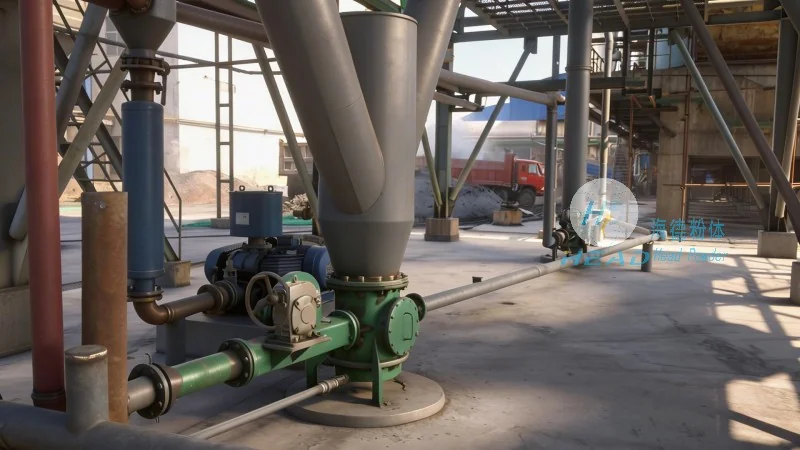

The ferrous sulfate powder conveying system is engineered to handle both crystalline and ground forms of ferrous sulfate, ranging from fine dust to granular particles. The core of the solution is a closed-loop pneumatic pipeline that utilizes either positive pressure (dense phase) or negative pressure (dilute phase) depending on the material characteristics and distance requirements. For ferrous sulfate, which tends to be sticky and corrosive under humid conditions, headpowder recommends a dense-phase conveying mode with low gas velocity to minimize attrition and prevent pipe blockages. Key components include a specially designed rotary airlock feeder, a wear-resistant conveying pipeline made of stainless steel or lined with anti-corrosion material, a high-efficiency cyclone separator, a bag filter or cartridge dust collector, and a PLC-based control system. The entire ferrous sulfate powder conveying system is sealed to prevent moisture ingress and dust emission, ensuring compliance with stringent environmental and safety regulations.

Working Principle and Process Flow

The pneumatic conveying process begins at the material source, typically a storage hopper or big-bag unloading station. The ferrous sulfate powder is fed into the conveying line through a metering device that accurately controls the feed rate. Compressed air (or nitrogen for inert atmosphere) is introduced to fluidize the powder and propel it through the pipeline. In the dilute-phase mode, the particles are suspended in a high-velocity airstream, suitable for short distances and low-capacity applications. For longer distances or higher capacities, the dense-phase mode is employed, where the material moves as a slug or continuous plug at low velocity, reducing wear and energy consumption. At the destination, the air-powder mixture enters a cyclone separator that separates the bulk of the powder; the remaining fine dust is captured by a pulse-jet filter, and clean air is discharged or recirculated. The system can be configured for multiple discharge points, allowing flexible routing to mixers, reactors, packaging machines, or storage silos. All parameters—pressure, flow rate, material level, and filter differential pressure—are monitored and controlled by a touch-screen HMI, enabling fully automatic operation with minimal manual intervention.

Key Advantages of headpowder's Ferrous Sulfate Pneumatic Conveying

Choosing the right conveying technology for ferrous sulfate powder is essential to maintain product quality and operational efficiency. headpowder's solution offers several distinct advantages:

• Dust-Free and Hygienic Environment: The fully enclosed pipeline eliminates fugitive dust, protecting workers from inhalation hazards and preventing cross-contamination. This is particularly important for ferrous sulfate, which can irritate the respiratory tract and stain surfaces.
• Gentle Material Handling: Low-velocity dense-phase transport preserves the crystal structure and particle size distribution of ferrous sulfate, avoiding degradation that can occur in mechanical conveyors or high-speed pneumatic systems.
• Corrosion Resistance: All contact parts are constructed from corrosion-resistant materials such as 304 or 316L stainless steel, with optional PTFE or rubber lining for aggressive environments. This extends equipment life and reduces maintenance costs.
• Energy Efficiency: Optimized air-to-material ratios and smart control algorithms minimize compressed air consumption, resulting in lower operating expenses compared to traditional dilute-phase systems.
• Flexible Integration: The system can be easily retrofitted into existing production lines or designed as a turnkey solution for new plants, accommodating various feed points, discharge configurations, and capacity ranges from 100 kg/h to 50 t/h.

Application Scenarios and Industry Use Cases

The ferrous sulfate powder pneumatic conveying system is widely deployed in multiple industries. In water treatment plants, it reliably delivers ferrous sulfate coagulant to mixing tanks, ensuring consistent dosing without clogging. In agricultural fertilizer production, the system transports micronutrient-grade ferrous sulfate to blending units, maintaining homogeneity and preventing segregation. Chemical manufacturers utilize the system to feed ferrous sulfate into reactors for the production of iron-based catalysts, pigments, and other iron compounds. Additionally, the system is ideal for handling ferrous sulfate monohydrate in the production of lithium iron phosphate (LFP) battery materials, where purity and moisture control are critical. headpowder has successfully implemented dozens of projects across China, Southeast Asia, Europe, and the Middle East, demonstrating robust performance even under challenging climatic conditions such as high humidity or extreme temperatures.

About Shandong Headpowder Engineering Co., Ltd.

Headquartered in Shandong, China, Shandong Headpowder Engineering Co., Ltd. (headpowder) is a specialized engineering company focusing on pneumatic conveying, dust collection, and bulk material handling systems for over 15 years. With a team of experienced engineers and a state-of-the-art testing laboratory, the company provides custom-designed solutions tailored to the unique properties of each powder. From initial feasibility studies and material characterization to system design, fabrication, installation, and commissioning, headpowder offers end-to-end services. The company's commitment to quality and innovation has earned it a reputation as a trusted partner for ferrous sulfate and other challenging powders.

Contact Information and Technical Support

For detailed project consultation, technical datasheets, or a free evaluation of your ferrous sulfate powder handling requirements, please contact the headpowder team. Our experienced sales engineer, Manager Zhang, is ready to assist you with system sizing, layout design, and budget estimation. You can reach Manager Zhang via WeChat at 15662777102. We welcome inquiries from domestic and international clients and look forward to providing a reliable, efficient, and cost-effective ferrous sulfate powder conveying system for your application. Whether you need a small-scale batch unit or a large continuous production line, headpowder has the expertise to deliver.

Conclusion

In summary, the pneumatic conveying solution developed by Shandong Headpowder Engineering Co., Ltd. offers a superior approach to handling ferrous sulfate powder. By combining advanced dense-phase technology, corrosion-resistant materials, and intelligent control, the system ensures safe, clean, and efficient transport while preserving product quality. With proven field performance and dedicated customer support, headpowder is your ideal partner for optimizing your powder handling operations. To learn more about how our ferrous sulfate powder pneumatic conveying system can benefit your facility, contact Manager Zhang via WeChat (15662777102) today.
