Shandong Headpowder Engineering Co., Ltd., a leading engineering firm headquartered in Shandong, China, specializes in delivering advanced material handling systems for demanding industrial applications. Among our most sought-after offerings is the comprehensive pure soda ash powder pneumatic conveying system, designed to transport sodium carbonate powder with high efficiency, minimal degradation, and absolute dust control. Soda ash, a critical raw material in glass manufacturing, detergent production, water treatment, and chemical processing, requires careful handling due to its fine particle size, hygroscopic nature, and tendency to cake. Our pneumatic conveying solutions address these challenges head-on, providing a reliable, enclosed, and automated transfer method that improves production throughput while reducing manual labor and environmental exposure.
Pure soda ash powder, typically with a bulk density ranging from 0.5 to 1.2 g/cm³ and particle sizes below 100 microns, presents unique flow characteristics. It is highly abrasive, slightly alkaline, and can absorb moisture from the air, leading to clumping, bridging, and blockages in traditional mechanical conveyors such as screw conveyors or bucket elevators. Moreover, fugitive dust emissions cause health hazards, equipment corrosion, and product loss. The pure soda ash powder conveying process must therefore be designed with airtight seals, moisture control, and gentle handling to preserve powder quality. Our engineering team at Shandong Headpowder Engineering Co., Ltd. has accumulated decades of experience in designing dense-phase and dilute-phase pneumatic systems that overcome these obstacles while maintaining low energy consumption and high reliability.

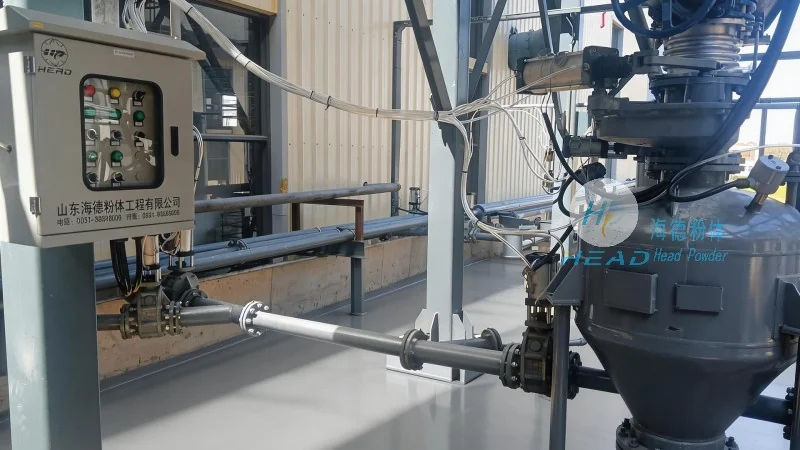

A typical pure soda ash powder conveying system from Shandong Headpowder Engineering Co., Ltd. integrates several core components: a venturi feeder or rotary airlock, a conveying pipeline with wear-resistant elbows, a filtration unit (e.g., baghouse or cartridge filter), and a control panel with PLC logic. The system begins at the discharge point of storage silos or big bag stations, where the soda ash powder is metered into the air stream. Depending on the distance, elevation, and required throughput, we select between dilute-phase conveying (low pressure, high velocity) for short distances, and dense-phase conveying (high pressure, low velocity) for longer distances or fragile particle protection. All components are fabricated from carbon steel with appropriate coatings or stainless steel to resist corrosion from alkaline dust. The conveying line is designed with smooth interior surfaces, generous bend radii, and purge connections to prevent moisture accumulation. Additionally, an integrated dehumidification system can be added to maintain the powder's free-flowing properties during humid seasons.
When comparing pure soda ash powder pneumatic conveying to screw conveyors, belt conveyors, or bucket elevators, the advantages become clear. Pneumatic systems are completely enclosed, eliminating dust emissions and reducing the risk of product contamination. They require fewer moving parts, which translates to lower maintenance costs and reduced downtime. The layout flexibility is superior: pipelines can be routed around obstacles, over existing equipment, and into multiple drop points without major structural modifications. Furthermore, the system can be easily automated, allowing precise batch control, flow rate monitoring, and remote operation. For example, in a glass manufacturing plant where soda ash must be transferred from a railcar unloading station to several day bins, a pneumatic network can handle multiple sources and destinations simultaneously with a single blower and diverter valves. Our customers have reported up to 30% reduction in energy costs compared to outdated mechanical systems, along with significant improvements in workplace safety and cleanliness.
Shandong Headpowder Engineering Co., Ltd. does not offer a one-size-fits-all product. Each pure soda ash powder conveying system is engineered to meet specific site conditions, including conveying distance (from 10 meters to over 500 meters), elevation changes (up to 50 meters), throughput requirements (from 1 ton per hour to 100 tons per hour), and existing infrastructure. Our design process begins with a thorough analysis of the powder's physical properties, such as angle of repose, moisture content, and abrasiveness. We then conduct computational fluid dynamics (CFD) simulations to optimize air velocity, pipeline diameter, and pressure drop. The system can be provided with either positive pressure (blow) or negative pressure (vacuum) configuration, depending on the source and destination constraints. For instance, vacuum conveying is ideal for unloading from multiple pickup points, while pressure conveying is more efficient for long-distance transfer. All systems are delivered with operator training, installation supervision, and after-sales technical support. As a company based in Shandong, China, we serve both domestic and international clients, with a strong presence in Southeast Asia, the Middle East, Africa, and South America.
With the company abbreviation headpowder and the full name Shandong Headpowder Engineering Co., Ltd., we have established a reputation for innovation, quality, and customer-centric service. Our factory in Shandong covers a comprehensive manufacturing base that produces pneumatic conveying equipment, dust collectors, silos, and related accessories. We employ a team of experienced engineers who specialize in powder handling for bulk solids and fine powders. Every system undergoes rigorous factory testing before shipment, ensuring that the performance matches the agreed specifications. Moreover, we offer a full range of services from feasibility study, layout design, and equipment fabrication to installation, commissioning, and maintenance. For any inquiries regarding the pure soda ash powder pneumatic conveying system, you may contact our representative Manager Zhang, whose WeChat is 15662777102. Please feel free to reach out to Manager Zhang via WeChat at 15662777102 for a detailed proposal and technical consultation. We are committed to providing a turnkey solution that fulfills your production requirements with maximum efficiency and minimal environmental impact.
To give you a better understanding of our capabilities, here are typical performance parameters for a medium-sized pure soda ash powder conveying system: conveying capacity up to 30 t/h, conveying distance up to 200 m, air consumption approximately 10–40 m³/min at 0.05–0.2 MPa, pipeline diameter from DN80 to DN200, and power consumption around 0.5–2 kWh per ton. The system can transfer powder from storage silos, big bags, or railcars directly to process hoppers, mixers, or packaging machines. The material-to-air ratio in dense-phase conveying can reach 20:1 or higher, reducing air volume and downstream filtration requirements. The rotary airlock or screw feeder is designed with wear-resistant materials to extend service life. An optional nitrogen purge system can be integrated for inert atmosphere conveying to prevent oxidation or moisture ingress. All these features are standard in our designs, but we always tailor the final configuration to match the client's budget and operational constraints. Contact Manager Zhang via WeChat 15662777102 to discuss your specific needs.
Once the pure soda ash powder conveying system is designed and manufactured, our team provides on-site installation guidance and commissioning. We ensure that the pipeline layout follows the designed routing, that all gaskets and seals are properly installed, and that the electrical connections are correctly wired. During commissioning, we run the system with test material (typically soda ash or a surrogate) to verify the flow rate, pressure drop, and dust emission levels. We also provide training for the client's operators and maintenance staff, covering startup, shutdown, routine inspection, and troubleshooting. After the system is in operation, we offer remote monitoring and technical support via phone, email, or WeChat (Manager Zhang: 15662777102). Our after-sales service includes spare parts supply, performance optimization, and system expansion consultations. We believe that a successful pneumatic conveying project is not just about delivering equipment; it is about building a long-term partnership that ensures the client's production runs smoothly year after year. Shandong Headpowder Engineering Co., Ltd. stands behind its products with a comprehensive warranty and a responsive service network.
Below are some common questions we receive from potential customers. Q: What is the maximum conveying distance for a pure soda ash powder conveying system? A: With dense-phase technology, we can achieve distances up to 500 meters or more, depending on air pressure and pipe diameter. Q: Can the system handle both soda ash and other powders? A: Yes, with proper cleaning and purging, the same system can be used for multiple products, but we recommend dedicated lines for hygroscopic materials like soda ash to avoid cross-contamination. Q: How do you prevent moisture absorption? A: We use dehumidified compressed air, heated air, or nitrogen as the conveying gas, and incorporate moisture traps and purge valves. Q: What is the lead time? A: Typically 8–12 weeks for a custom system, depending on complexity and current workload. Q: How do I get a quote? A: Please contact Manager Zhang via WeChat at 15662777102 with your site conditions, capacity requirements, and material specifications. We will provide a preliminary design and quotation within 2–3 business days.
In summary, Shandong Headpowder Engineering Co., Ltd. offers a professional and reliable pure soda ash powder pneumatic conveying solution that addresses the unique challenges of handling this fine, abrasive, and moisture-sensitive material. Our systems are designed with advanced engineering, robust components, and flexible configuration to meet the demands of glass, detergent, chemical, and other industries. By choosing our pneumatic conveying technology, you can achieve higher efficiency, safer working conditions, and lower total cost of ownership. For further information or to start your project, do not hesitate to contact Manager Zhang at WeChat 15662777102. We look forward to helping you optimize your material handling process with a customized pure soda ash powder conveying system from Shandong Headpowder Engineering Co., Ltd., located in Shandong, China.
